Sometimes even a dependable 200-amp electrical panel simply runs out of headroom. If you own a large, feature-packed estate anywhere across Metro Vancouver or the Fraser Valley, it can be surprising how fast today’s high-powered systems outgrow what a standard 200-amp service was ever built to deliver safely.
That is exactly where a 400-amp service upgrade steps in — and it is quickly becoming one of the most in-demand, high-value electrical upgrades for premium properties across British Columbia.
Let’s be honest: for the average household, 400-amp service is overkill. But for a high-end, energy-intensive home, it is the precise infrastructure needed to guarantee safety, code compliance, and truly uninterrupted power. If you are still weighing a smaller jump first, our companion guide on upgrading from a 100-amp to a 200-amp panel is a helpful place to start before you scale all the way up.
What Is 400-Amp Service, Really?

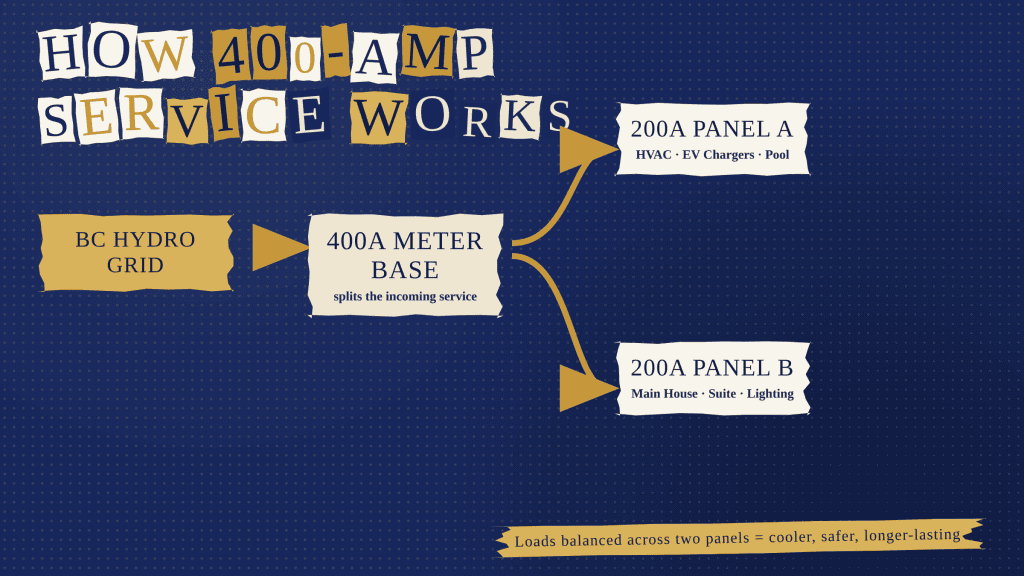

Picture a 400-amp upgrade as doubling the width of your home’s electrical “main artery.” In most residential engineering designs, it does not mean bolting in one enormous 400-amp panel. Instead, we install a 400-amp-rated meter base that cleanly feeds two separate 200-amp sub-panels:
BC Hydro Grid → 400A Meter Base → 200A Panel A (HVAC, EV chargers, pool)
→ 200A Panel B (main house, suite, lighting)
This split lets our electricians balance your heaviest loads strategically across two distinct panels. By stopping any single circuit from becoming a bottleneck, the whole system runs cooler, lasts longer, and operates with a far greater margin of safety.
Why it is a different animal: A 400-amp installation goes well beyond a routine electrical panel upgrade. It calls for heavier service-entrance conductors (frequently requiring underground trenching), close coordination with BC Hydro, and a thorough load calculation that strictly follows the Canadian Electrical Code (CEC).

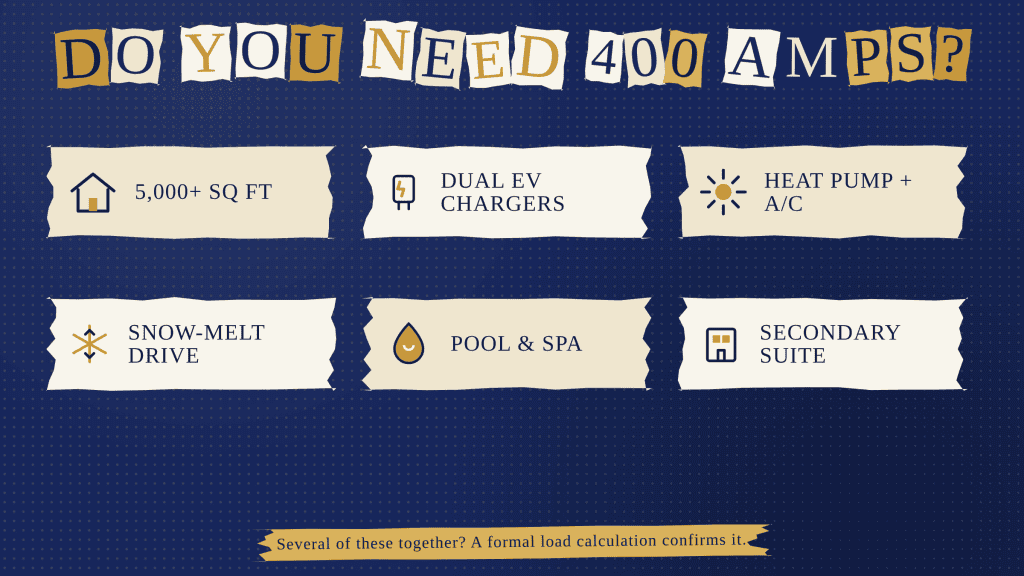

Do You Actually Need a 400-Amp Upgrade?
A single heavy appliance won’t max out a 200-amp panel, but stacking several high-draw systems together absolutely will. You are a strong candidate for a 400-amp upgrade if your home combines a few of these demanding assets:
- Expansive square footage: Properties over 5,000 sq. ft. with extensive architectural lighting, full automation, and multiple climate zones.
- Dual Level 2 EV chargers: Charging two electric vehicles at once, at 40A or 48A each, pulls a massive, continuous load.
- Advanced HVAC systems: Central air conditioning paired with electric cold-climate heat pumps working hard through BC winters and summers.
- Snow-melt systems: Heated driveways or walkways that draw significant continuous current during freezing weather.
- Pools & spas: Luxury outdoor setups, especially those running high-kilowatt electric heaters.
- Secondary suites: A legal suite, coach house, or nanny suite with its own kitchen, laundry, and heating appliances.
200-Amp vs. 400-Amp: At a Glance
Not sure where your current service really sits? If you are still deciding between the more common tiers first, our breakdown of 100-amp vs. 200-amp panels covers the fundamentals — then the table below shows why some estates need to go further.
| Feature / Load | Standard 200-Amp Service | Premium 400-Amp Service |
| Ideal Home Size | Up to 3,500 – 4,000 sq. ft. | 5,000+ sq. ft. / multi-generation estates |
| EV Charging | 1 Level 2 charger (usually needs load management) | 2+ Level 2 chargers running at full speed, simultaneously |
| Luxury Amenities | Standard AC & hot tub | Electric pool heaters, hot tubs & heated driveways |
| Secondary Suites | Highly constrained; requires strict load shedding | Seamlessly powers main house + a legal rental suite |
| Future-Proofing | Limited room for growth | Ready for full electrification and solar/battery integration |
Why the Right Electrical Contractor Matters
Residential 400-amp service upgrades sit in a highly specialized niche. Very few electrical contractors in the Lower Mainland handle residential projects at this scale on a regular basis.
An inaccurate load calculation, poor panel balancing, or muddled communication with utility engineers can lead to failed Technical Safety BC (TSBC) inspections, expensive utility delays, and serious safety hazards.
At Intel Power, 400-amp service upgrades are squarely in our wheelhouse. As licensed, bonded, and insured FSR (Field Safety Representative) certified electricians, we manage the entire electrical panel upgrade lifecycle for you:
- Precise, CEC-compliant load calculations
- Design and engineering coordination with BC Hydro
- Permitting and representation through Technical Safety BC
- Flawless execution and final inspection sign-off
What Will a 400-Amp Upgrade Cost in BC?
Because every luxury property has a unique footprint, exact pricing is never one-size-fits-all. Your final investment depends on several critical variables:
- Whether your incoming BC Hydro service is overhead or underground
- The distance from the property line or utility pole to your electrical room
- Civil work requirements such as trenching or concrete cutting
- Specific transformation requirements set by BC Hydro’s engineering team
Rather than quote a misleading ballpark, we give you an accurate, no-surprises number after a detailed on-site assessment of your current infrastructure and the most efficient path forward. For a transparent, property-specific quote, call us today at (778) 718-4497 and we’ll walk you through it.
Ready to Power Your Property Safely?
Don’t let your home’s electrical infrastructure bottleneck your lifestyle or compromise your safety. Whether you are planning a major renovation, building a custom estate, or adding high-draw amenities like EV chargers and heat pumps, let’s build an electrical system designed for the future.
Contact Intel Power today for a comprehensive 400-Amp Service Assessment.
Online: Request a consultation & quote via our online form
Frequently Asked Questions
What is the exact structural difference between a 200-amp and a 400-amp residential service?
A standard 200-amp service feeds a single breaker panel that distributes power throughout the home. A 400-amp service uses a specialized, heavy-duty 400-amp meter base mounted on the exterior of your home. That meter base splits the incoming power to feed two separate 200-amp panels inside, doubling your total electrical capacity and enabling balanced load distribution.
How do I legally prove my home needs a 400-amp upgrade in BC?
The definitive authority is a formal load calculation performed by a qualified electrician using Section 8 of the Canadian Electrical Code. It accounts for your square footage, space heating, air conditioning, EV chargers, and luxury loads. If your calculated continuous demand exceeds 160 amps (80% of a 200-amp service), a 400-amp upgrade is legally required for compliance and safety.
Can any licensed electrician perform a 400-amp upgrade?
While it is legally permitted for any holder of a valid contractor license, many residential electricians simply lack hands-on experience with 400-amp infrastructure. These projects involve heavy-gauge conductors, complex utility designs with BC Hydro, and specific Technical Safety BC mandates. It is well worth hiring a specialist like Intel Power.
Does a 400-amp service add market value to my Lower Mainland home?
Absolutely. Today’s buyers pay close attention to a property’s readiness for electrification. A 400-amp service future-proofs the estate for multiple EVs, heat pumps, smart-home automation, and potential solar grid-tie systems, a genuinely attractive premium asset in the BC real estate market. It is one of the highest-leverage forms of electrical panel upgrade you can invest in.
